Seaview

PMA57M1

Modular Radar Mounts

Fitting Guide
Modular Radar Mount Fitting Guide
Mount Style Mount Height Fits Closed Dome Radars Fits Open Array Radars Fits Satellite Domes
Aft Leaning 5" 18" - 24" Up to 6' Up to 16"
Aft Leaning 10" 18" - 24" - Up to 16"
Aft Leaning 12" 18" - 24" * Up to 4.5' * Up to 24"
Aft Leaning 16" 18" - 24" - Up to 16"
Aft Leaning 18" 18" - 24" * Up to 4.5' * Up to 24"
Aft Leaning 24" 18" - 24" - Up to 16"
Aft Leaning 36" 18" - 24" - Up to 16"
Forward Leaning 5" 18" - 24" Up to 6' Up to 16"
Forward Leaning 10" 18" - 24" - Up to 16"
Vertical 5" 18" - 24" - Up to 24"
Vertical 12" 18" - 24" - Up to 24"
Vertical 18" 18" - 24" - Up to 24"

* Only when using Seaview Modular Top Plate #ADAR1DMLTB.

  • Description

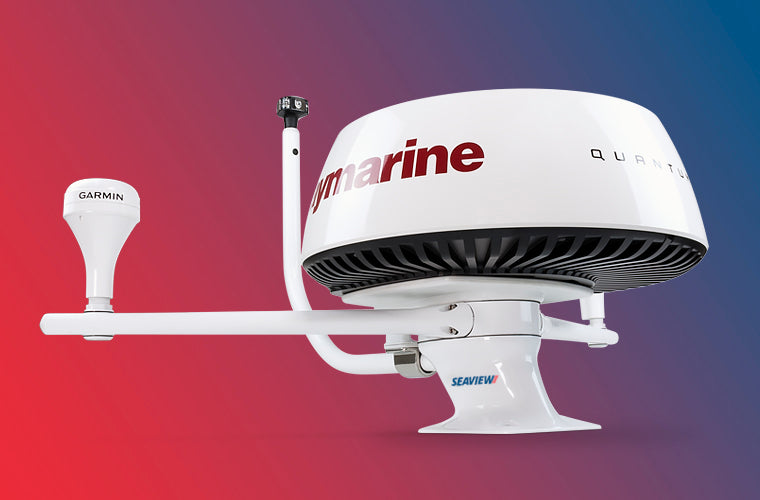

    This Seaview Modular Radar Mount works with 18" - 24" closed dome radars. The modular design allows you to add various accessories and different top plates at any point, thus making it a cost effective choice. A Seaview Modular Top Plate is required and sold separately!

  • Dimensions

    Download the dimension drawings below. Can't find what you're looking for? Contact us!

    Seaview Part Number Dimensional Drawing
    AM5M1 Download
    AM18M1 Download
    PMA57M1 Download
    PMA107M1 Download
    PMA167M1 Download
    PMA247M1 Download
    PMA367M1 Download
    PMF57M1 Download
    PMF107M1 Download
