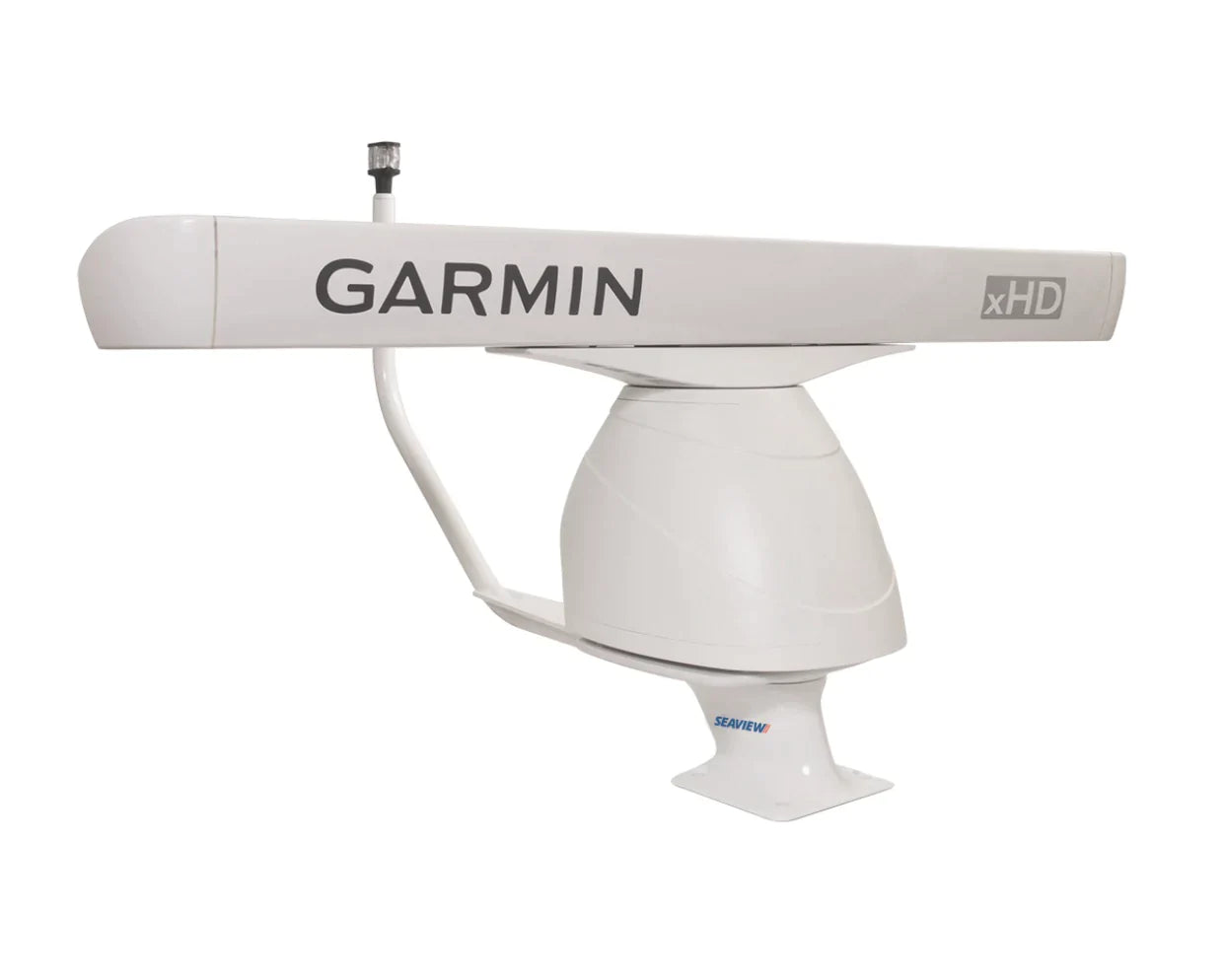

Modular Open Array Mounts-Modular Radar Mounts-Seaview-5" Aft leaning-Seaview Global

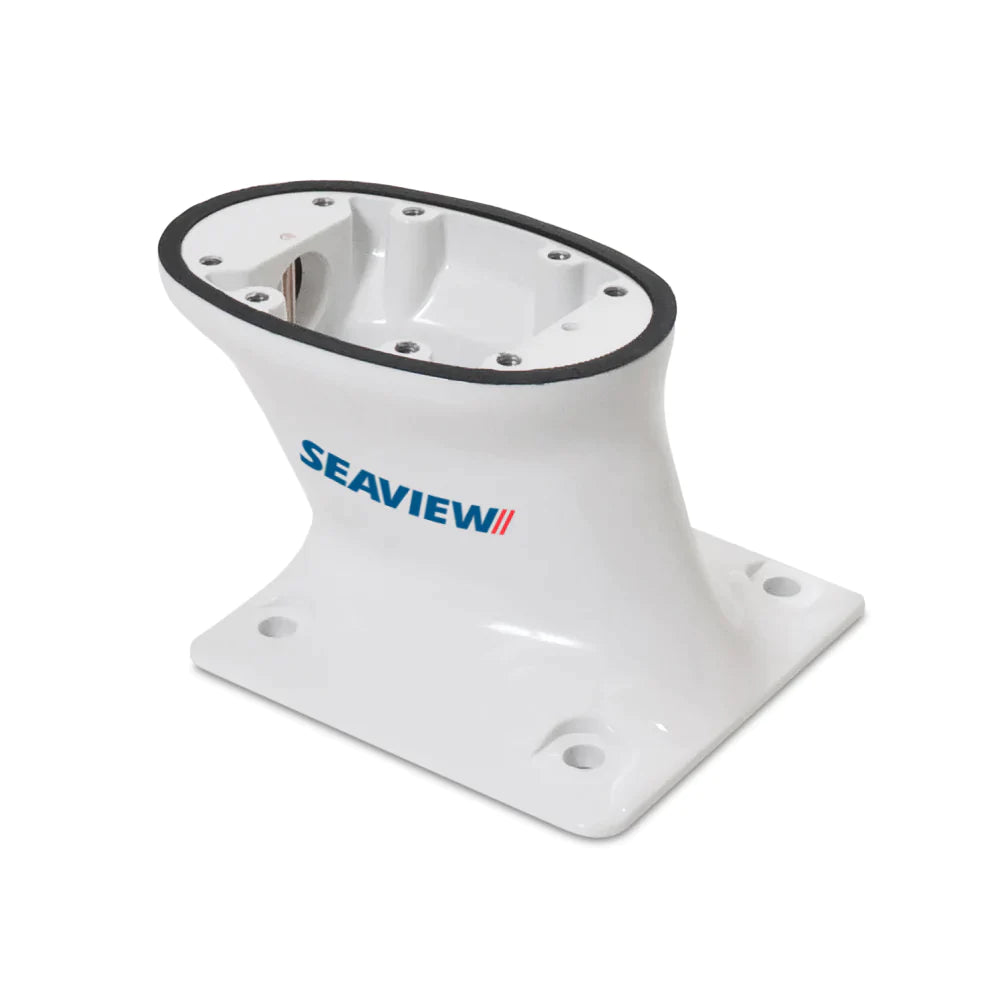

Modular Open Array Mounts-Modular Radar Mounts-Seaview-Aft leaning-Seaview Global

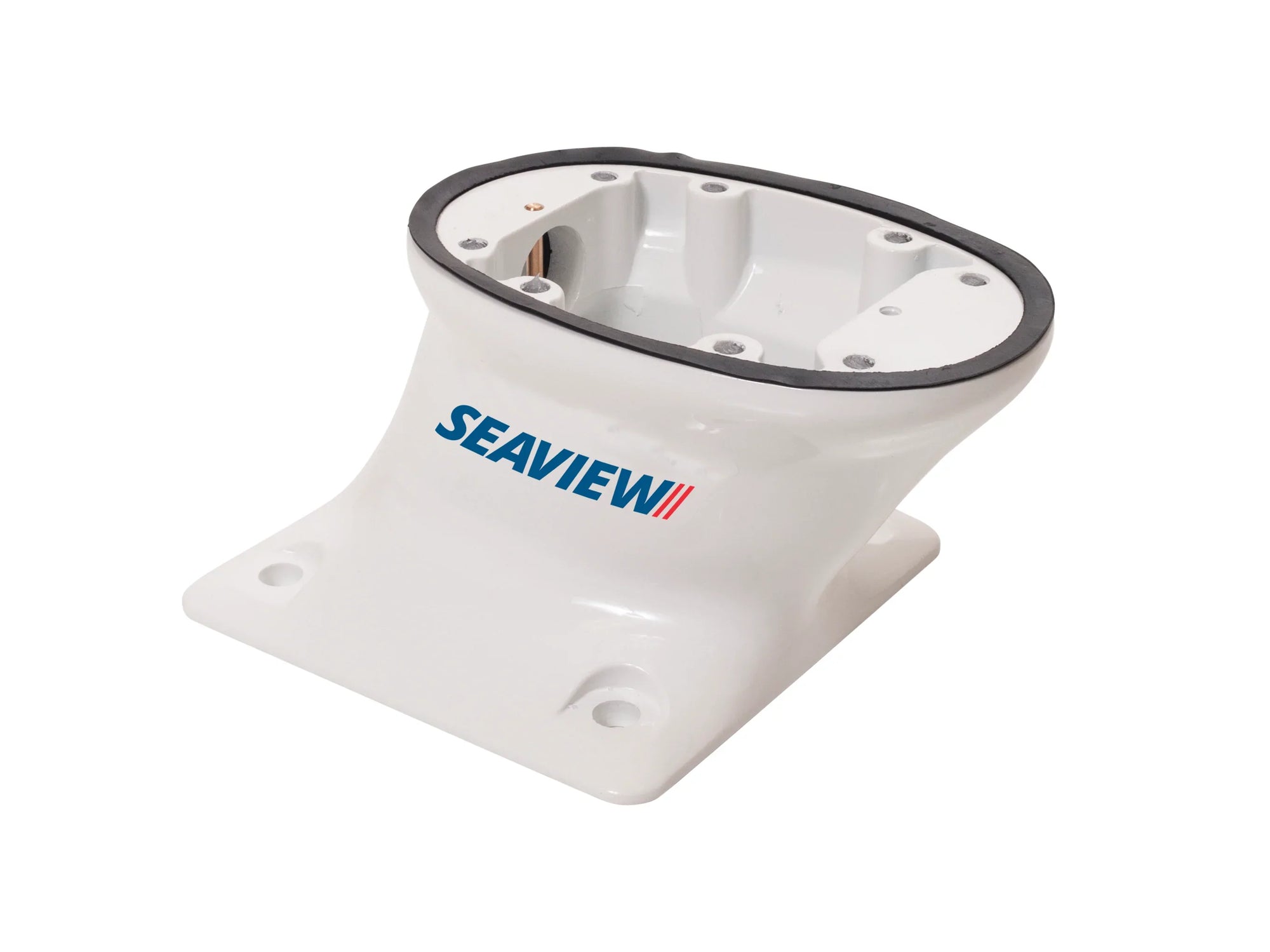

Modular Open Array Mounts-Modular Radar Mounts-Seaview-Forward leaning-Seaview Global

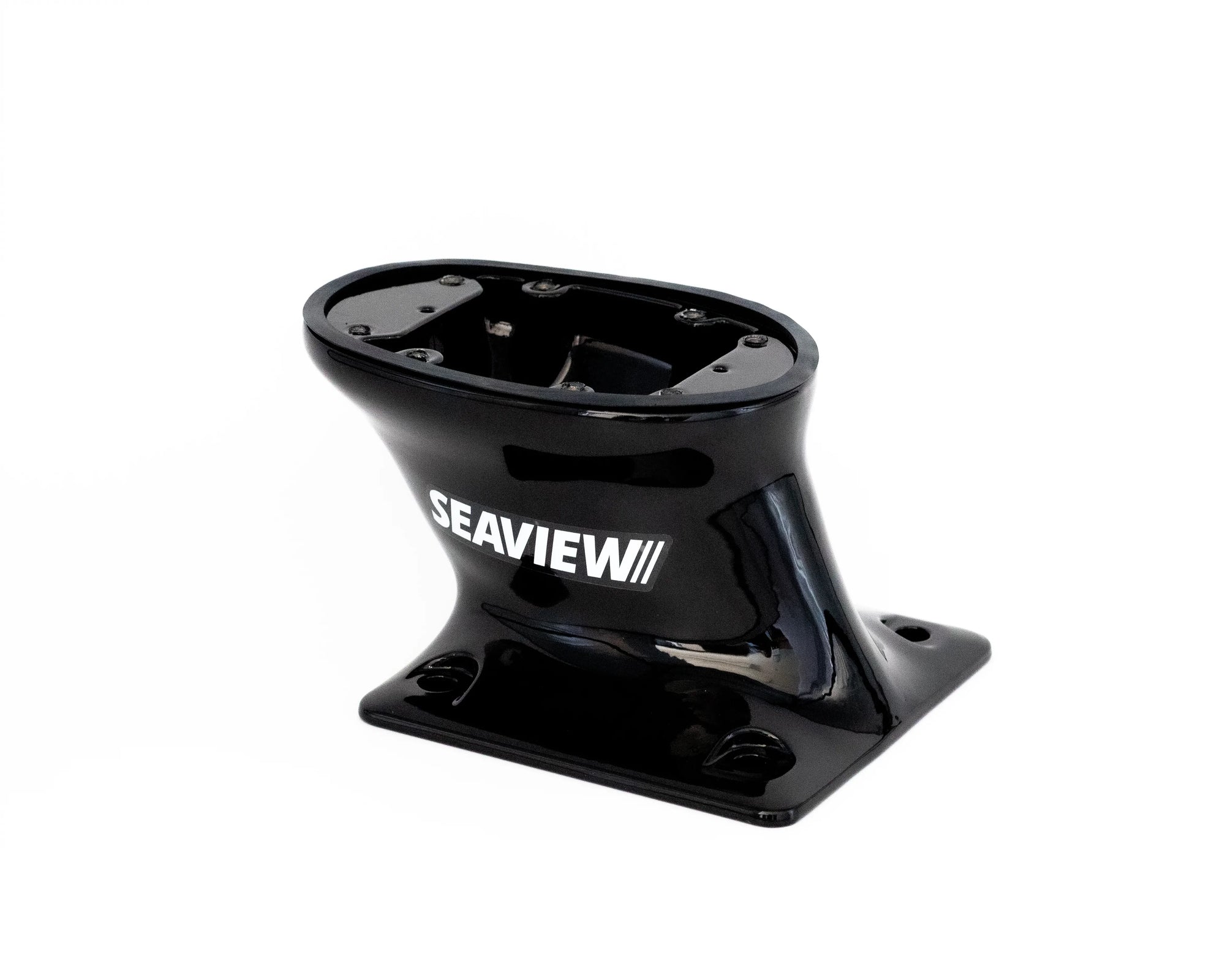

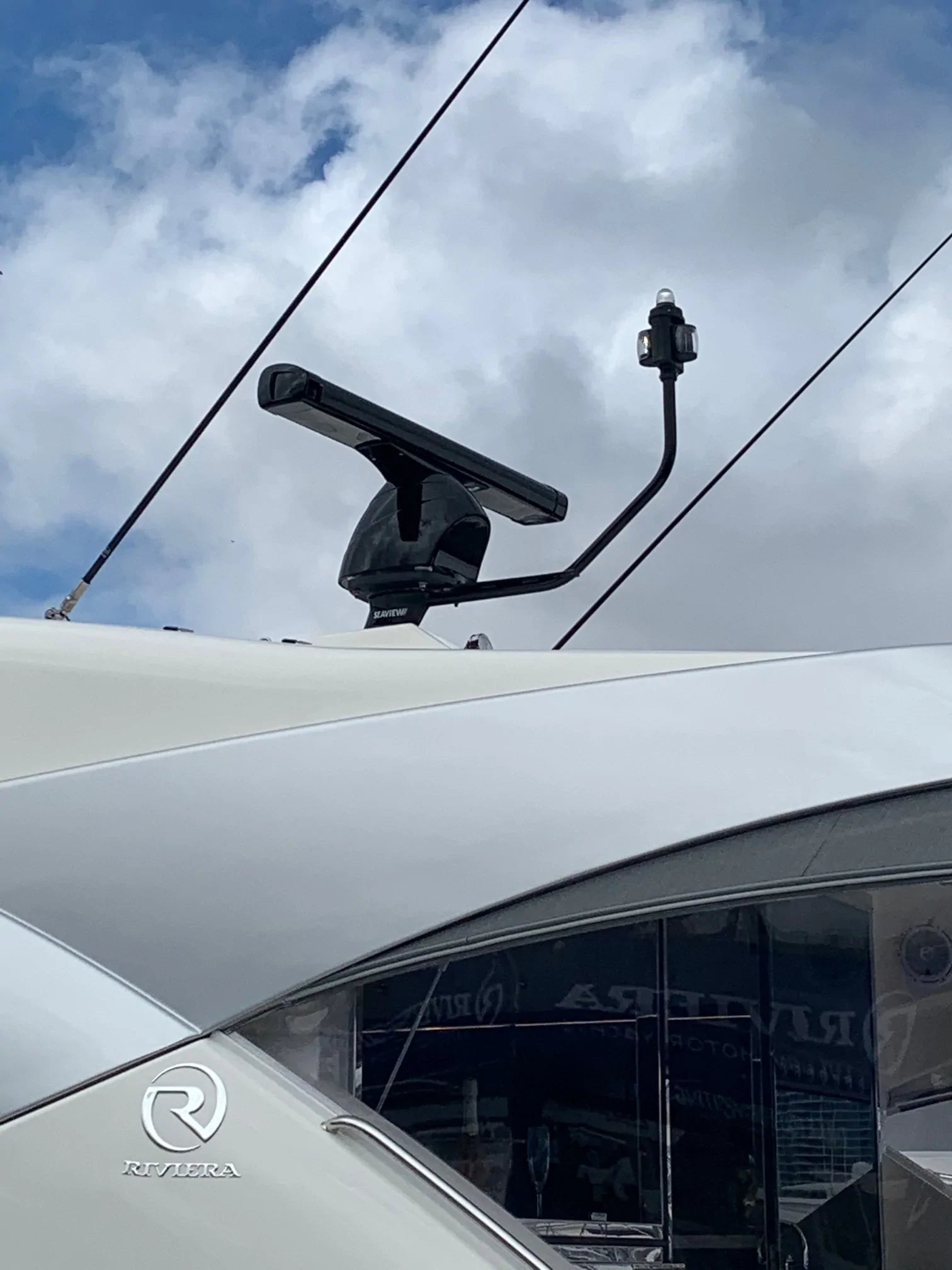

Modular Open Array Mounts-Modular Radar Mounts-Seaview-Aft leaning BLACK-Seaview Global

Modular Open Array Mounts-Modular Radar Mounts-Seaview-FWD leaning BLACK-Seaview Global

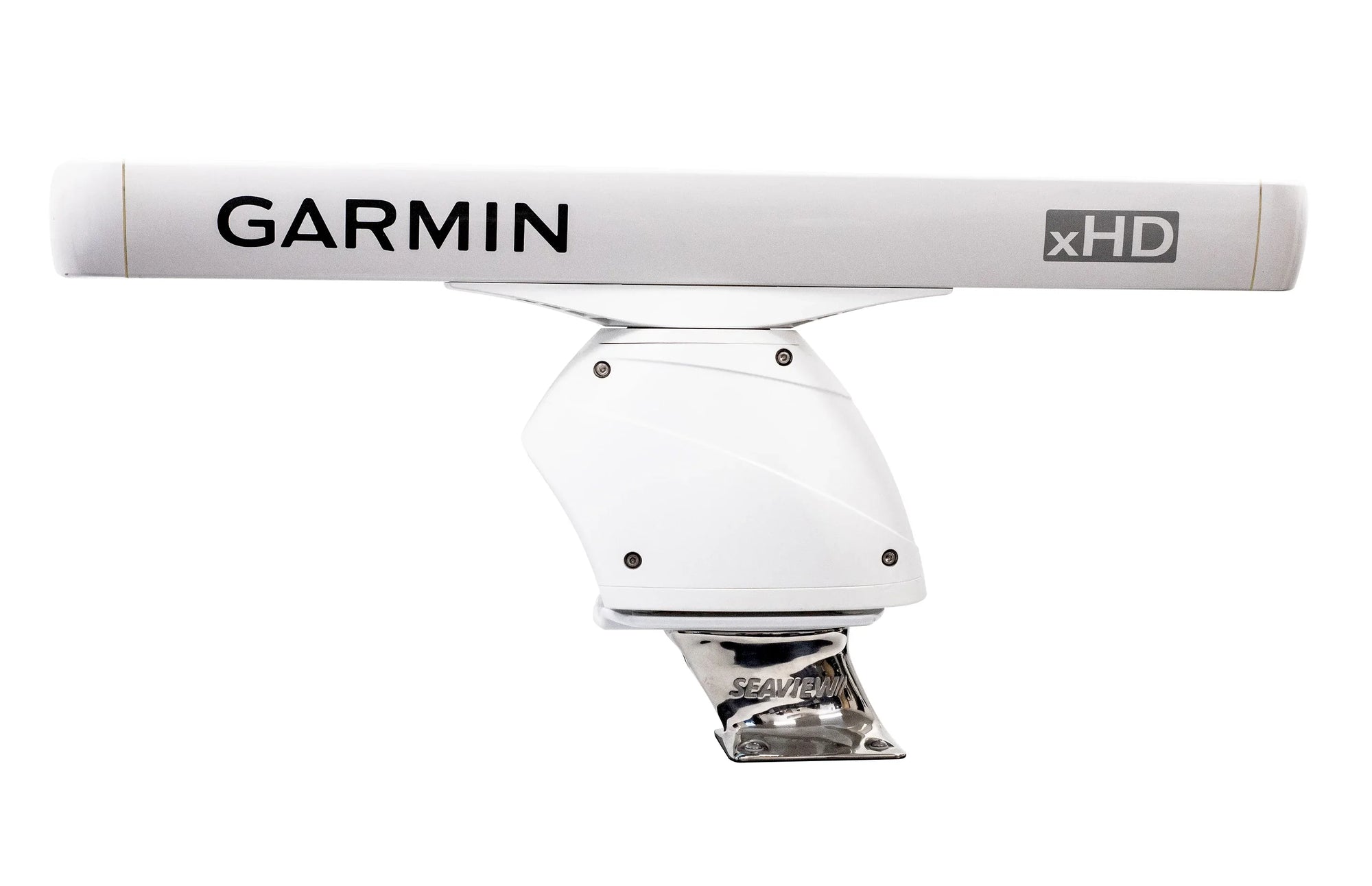

Modular Open Array Mounts-S.S. Radar Mounts-Seaview-5" Aft leaning-Seaview Global

Seaview

PMA57M1 + ADAR1

Modular Open Array Mounts

Fitting Guide

Modular Radar Mount Fitting Guide

Mount Style	Mount Height	Fits Closed Dome Radars	Fits Open Array Radars	Fits Satellite Domes
Aft Leaning	5"	18" - 24"	Up to 6'	Up to 16"
Aft Leaning	10"	18" - 24"	-	Up to 16"
Aft Leaning	12"	18" - 24" *	Up to 4.5' *	Up to 24"
Aft Leaning	16"	18" - 24"	-	Up to 16"
Aft Leaning	18"	18" - 24" *	Up to 4.5' *	Up to 24"
Aft Leaning	24"	18" - 24"	-	Up to 16"
Aft Leaning	36"	18" - 24"	-	Up to 16"
Forward Leaning	5"	18" - 24"	Up to 6'	Up to 16"
Forward Leaning	10"	18" - 24"	-	Up to 16"
Vertical	5"	18" - 24"	-	Up to 24"
Vertical	12"	18" - 24"	-	Up to 24"
Vertical	18"	18" - 24"	-	Up to 24"

* Only when using Seaview Modular Top Plate #ADAR1DMLTB.

$395.00

Description
Dimensions

Description

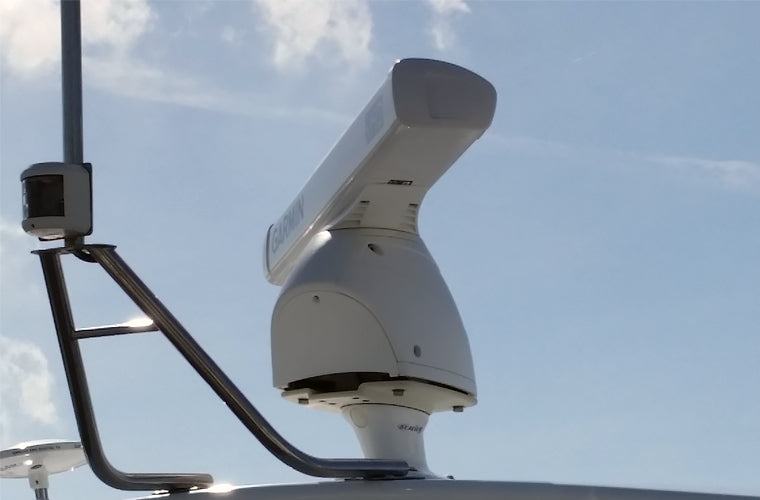

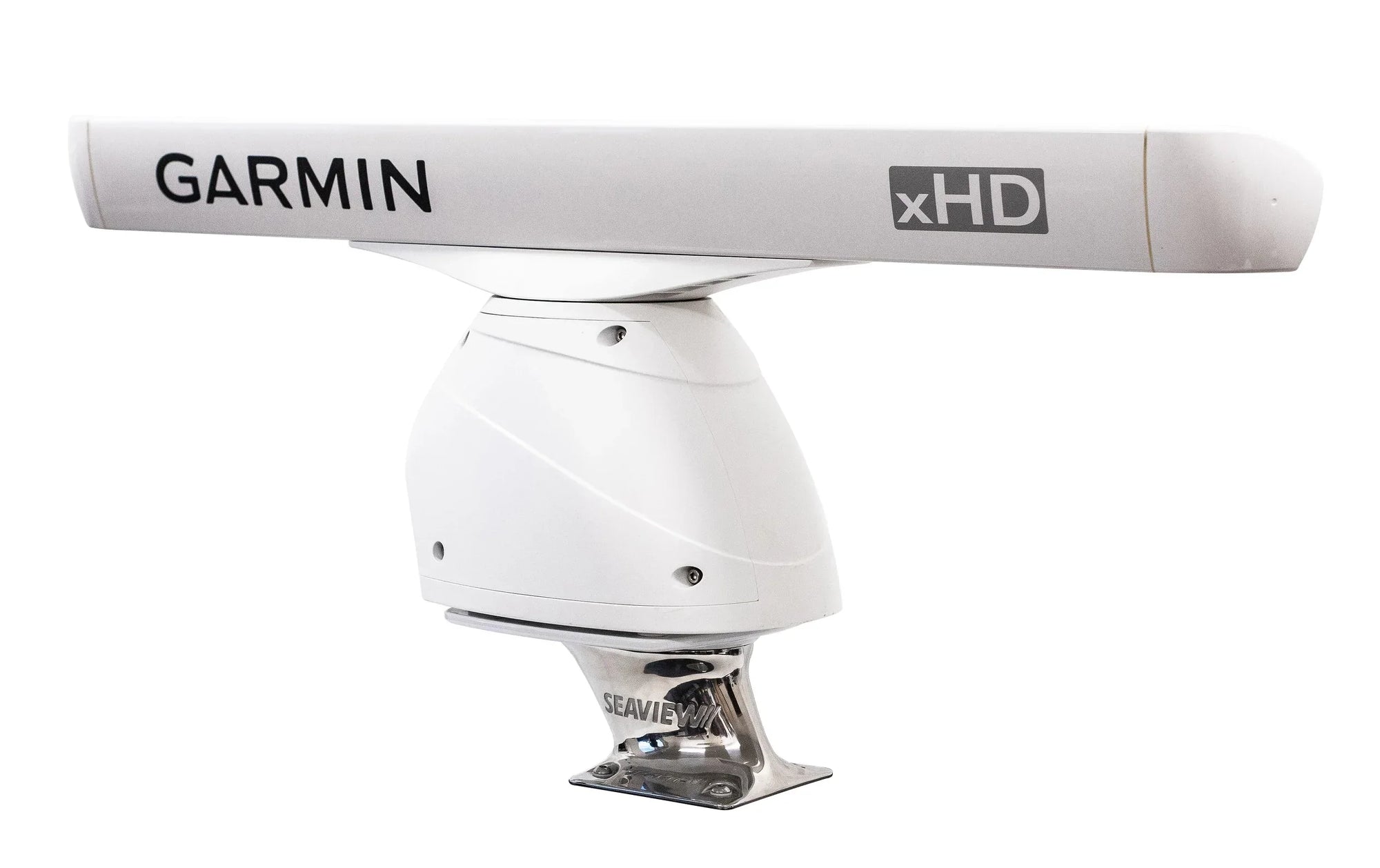

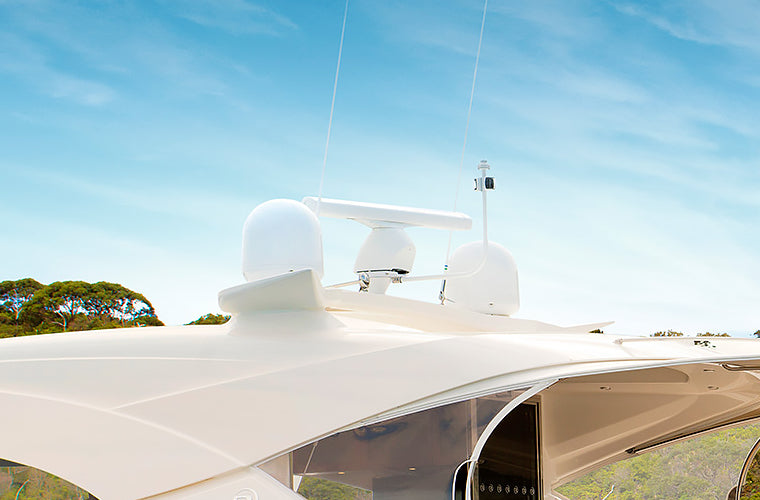

This Seaview Modular Mount works with open array radars. The modular design allows you to add various accessories and different top plates at any point. Thus making it a cost effective choice. Oval hollow mast section allows for easy cable management.

Both forward and aft leaning styles are 5" tall and have a 7"x7" base. Optional accessories such as a light bar or wedge are also available. A top plate is required and sold separately!
Seaview Part Number Dimensions

PMA57M1 & PMA57M1BLK Download

PMF57M1 & PMF57M1BLK Download

PMA57LSS Download

Seaview Rocks

I am amazed at the fit and finish of these components. Everything went together as it should and the instruction downloads are on point. I’m most impressed with the quality of the white paint mount and spreaders. Amazing product.

Excellent Order Processing

I made a mistake with my order and they caught it immediately, contacted me and corrected my mistake. That NEVER happens. Thank you for your great service.

Modular Top Plate

A Seaview Modular Top Plate is required to mount a radar, satellite dome, camera or search light, and is sold separately.

Find Your Modular Top Plate

Seaview Modular Mount and Modular Top Plate

Modular Design

The modular design allows the user to not have to replace the entire mount when a different radar or satdome is used. Instead the user can just replace the top plate.
