CG2090
$29.00

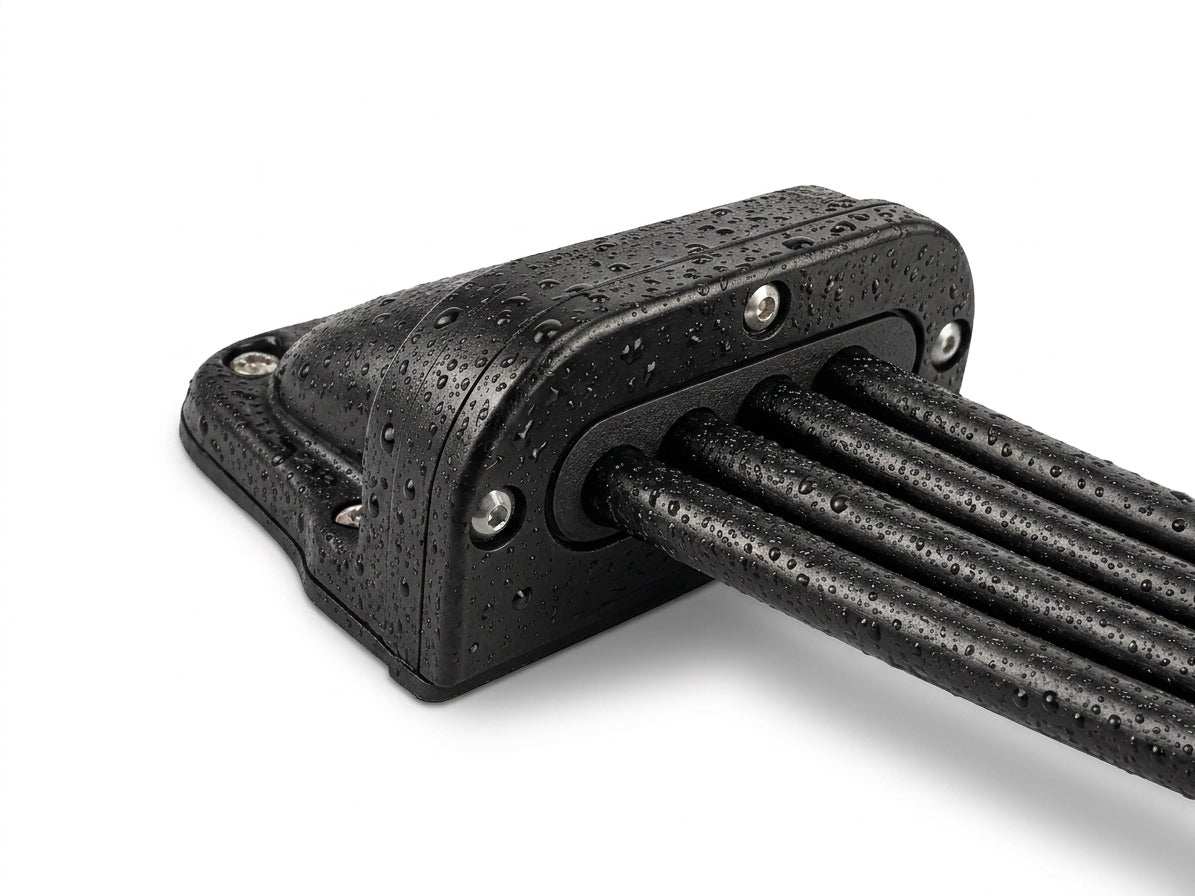

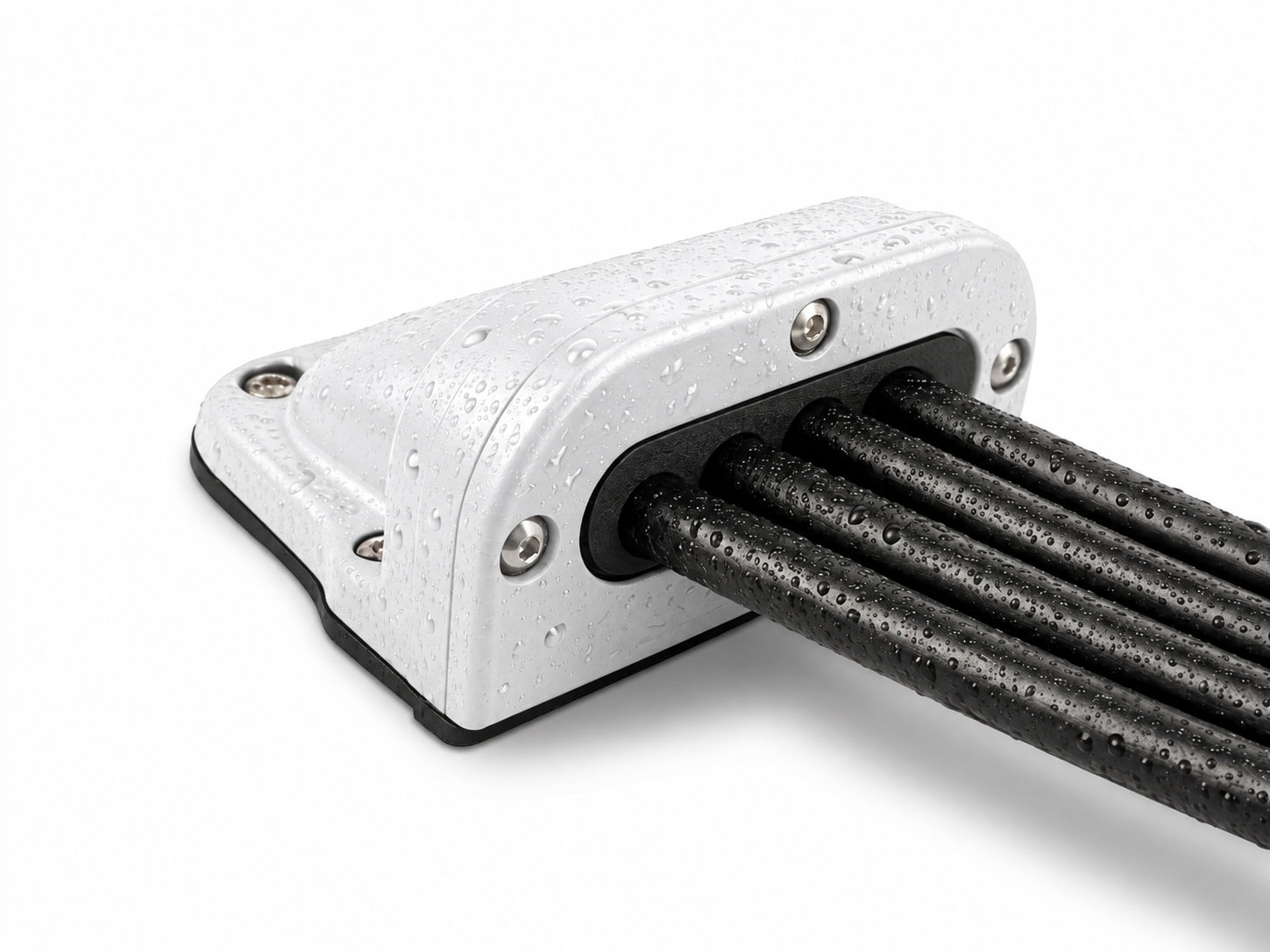

The Seaview horizontal cable seal (90 degree cable seal) is a streamlined, waterproof seal that has a horizontal orientation. This cable seal fits cable diameters up to 0.53” (13.5mm). Max connector size approx. 0.375"-0.5" (9.5mm-
12.7mm) depending on connector length and type.
It has a plastic housing (white or black) that is strong and impact-resistant with a captive nut in the base to make it easy to assemble. The tapered rubber bung forms a watertight seal and is supplied with drill tubes allowing you to drill your own custom diameter seal. This is also supplied with a thick rubber base gasket. IPX6 / IPX8 tested and approved.
These Cable Seals will work with more than one cable as long as each cable has its own hole and there is at least .125" of rubber around each hole.
| Seaview Part Number | Dimensions |
| CG2090 & CG2090W | Download |
Download the installation instructions in the chart below.
| Seaview Part Number | Installation Instructions |
| Horizontal Cable Seals | Download |
Low profile design for a strong, impact-resistant and clean installation (no sharp edges to hit your foot on). Unlike other brands, our inner rubber seal is flush with the top of the Cable Gland so that water does not have a place to collect.
Tapered rubber seal forms watertight installation. Base gasket also provided for clean water tight installation. Seaview Cable Glands have waterproof ratings of IPX6 and IPX7.
Each Cable Gland is supplied with a blank rubber tapered seal that has a molded location to drill and cut. Captive nuts make for easy assembly. Cable connectors do not need to be removed during installation. Stainless steel fasteners included.
"We outfitted a brand new Duckworth 26 offshore fishing machine with the latest Simrad NSS12/ BSM 3 fish finder with a large transom transducer. These have dual large diameter 1" plugs. Because of the dual outboards it is safer to bring the cable up high on the transom below the Yamaha hoses. This particular boat is metal flake black finish aluminum."
"The Seaview cable gland model CG30AB that we used is ideal, easy to install and matched the other Yamaha and Uflex through holes. This is a new product that improves on other designs, looks good and works well."
- Rob Bright
Pacific Yacht Management
"After the Seaview cable gland was installed and tested with an open hose (plenty of water), I have to say I´m very happy with the result, absolutely great, and dry inside, not even a minimal leak!. No leaks after 10 minutes of open water flow on cable gland. After 5 months the gland still works great! We are having a rainy season unlike anything before... still NO LEAKS!, NOT ONE!. I'm absolutely satisfied with the solution found. Thanks for the product!!!."
- Alvaro Perez
